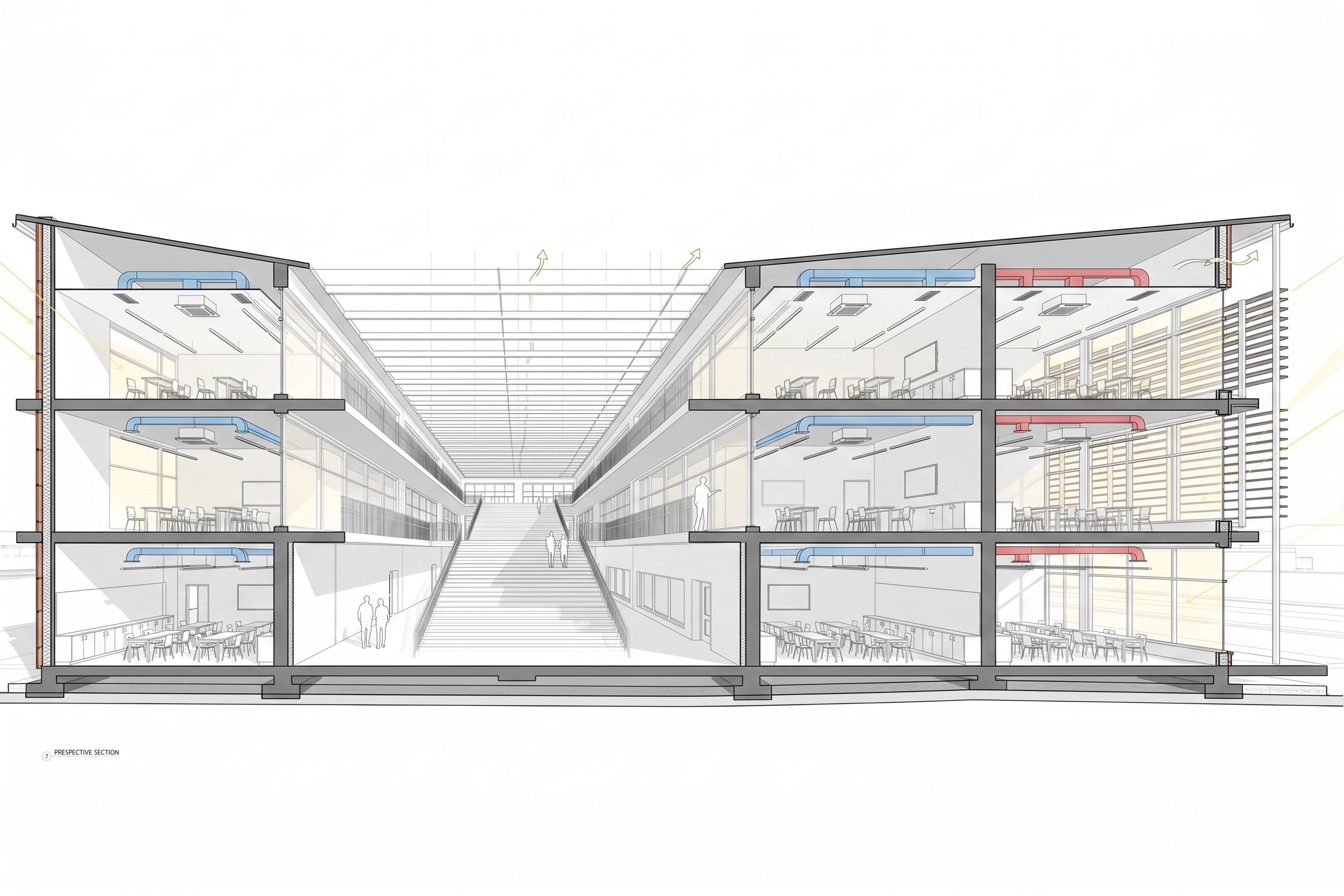

Enhance this architectural section-perspective drawing while preserving the EXACT geometry, camera angle, composition, and proportions of the original image. Treat the input image as a locked underlay. Do not modify or redesign the building. Transform this into a high-quality technical section-perspective drawing that integrates structure, envelope, passive systems, active systems, and interior spatial use. 🧱 1. SECTION CUT ENHANCEMENT CRITICAL Emphasize the section cut with strong poche: slabs walls structural elements Apply dark gray poche to cut elements Maintain lighter linework for elements beyond 🟫 2. ENVELOPE SYSTEM TERRACOTTA — MUST MATCH PROJECT At the exterior wall, clearly define: terracotta panel rainscreen system vertical or horizontal rhythm ventilated air cavity air barrier thin highlighted line continuous insulation structural wall interior finish Show glazing as double line with mullions Add horizontal shading device outside façade 🌬️ 3. HVAC SYSTEM INTEGRATION Add a clean DOAS + VRF system: Ceiling Zone: main supply duct central branch ducts extending toward glazing side linear diffusers or ceiling diffusers Equipment: VRF indoor units above ceiling simple boxes return air path minimal indication 🎨 Color SUBTLE: blue = supply air red = return air Keep diagrammatic — DO NOT clutter 💡 4. LIGHTING SYSTEM Add: linear light fixtures suspended or ceiling-mounted evenly spaced, aligned with space rhythm ☀️ 5. PASSIVE SYSTEM OVERLAYS VERY LIGHT Add minimal overlays: sun rays entering through glazing soft yellow lines shading device blocking direct sunlight daylight gradient into interior space subtle airflow arrows for natural ventilation Keep overlays soft and transparent 🪑 6. FURNITURE + PROGRAM THIS IS WHAT YOU’RE MISSING Turn this into a real classroom / learning space Add: student desks + chairs simple, repeated rhythm teacher area or presentation wall built-in storage or casework circulation zone a few human figures very minimal, line-based 🧠 7. DEPTH + ATMOSPHERE Use grayscale depth: darker in foreground lighter in background add subtle shadow under slabs and elements maintain clean white space ✏️ 8. LINEWORK QUALITY strong hierarchy: heavy = cut medium = primary edges light = background 🚫 STRICT RULES do not change geometry do not move or recompose drawing do not over-render do not add excessive textures 🎯 FINAL OUTPUT professional section-perspective drawing clear structural + environmental logic integrated passive and active systems readable, clean, and presentation-ready, keep exact camera angle
PromptEnhance this architectural section-perspective drawing while preserving the EXACT geometry, camera angle, composition, and proportions of the original image. Treat the input image as a locked underlay. Do not modify or redesign the building. Transform this into a high-quality technical section-perspective drawing that integrates structure, envelope, passive systems, active systems, and interior spatial use. 🧱 1. SECTION CUT ENHANCEMENT (CRITICAL) Emphasize the section cut with strong poche: slabs walls structural elements Apply dark gray poche to cut elements Maintain lighter linework for elements beyond 🟫 2. ENVELOPE SYSTEM (TERRACOTTA — MUST MATCH PROJECT) At the exterior wall, clearly define: terracotta panel rainscreen system (vertical or horizontal rhythm) ventilated air cavity air barrier (thin highlighted line) continuous insulation structural wall interior finish Show glazing as double line with mullions Add horizontal shading device outside façade 🌬️ 3. HVAC SYSTEM INTEGRATION Add a clean DOAS + VRF system: Ceiling Zone: main supply duct (central) branch ducts extending toward glazing side linear diffusers or ceiling diffusers Equipment: VRF indoor units above ceiling (simple boxes) return air path (minimal indication) 🎨 Color (SUBTLE): blue = supply air red = return air Keep diagrammatic — DO NOT clutter 💡 4. LIGHTING SYSTEM Add: linear light fixtures suspended or ceiling-mounted evenly spaced, aligned with space rhythm ☀️ 5. PASSIVE SYSTEM OVERLAYS (VERY LIGHT) Add minimal overlays: sun rays entering through glazing (soft yellow lines) shading device blocking direct sunlight daylight gradient into interior space subtle airflow arrows for natural ventilation Keep overlays soft and transparent 🪑 6. FURNITURE + PROGRAM (THIS IS WHAT YOU’RE MISSING) Turn this into a real classroom / learning space Add: student desks + chairs (simple, repeated rhythm) teacher area or presentation wall built-in storage or casework circulation zone a few human figures (very minimal, line-based) 🧠 7. DEPTH + ATMOSPHERE Use grayscale depth: darker in foreground lighter in background add subtle shadow under slabs and elements maintain clean white space ✏️ 8. LINEWORK QUALITY strong hierarchy: heavy = cut medium = primary edges light = background 🚫 STRICT RULES do not change geometry do not move or recompose drawing do not over-render do not add excessive textures 🎯 FINAL OUTPUT professional section-perspective drawing clear structural + environmental logic integrated passive and active systems readable, clean, and presentation-ready, keep exact camera angle
