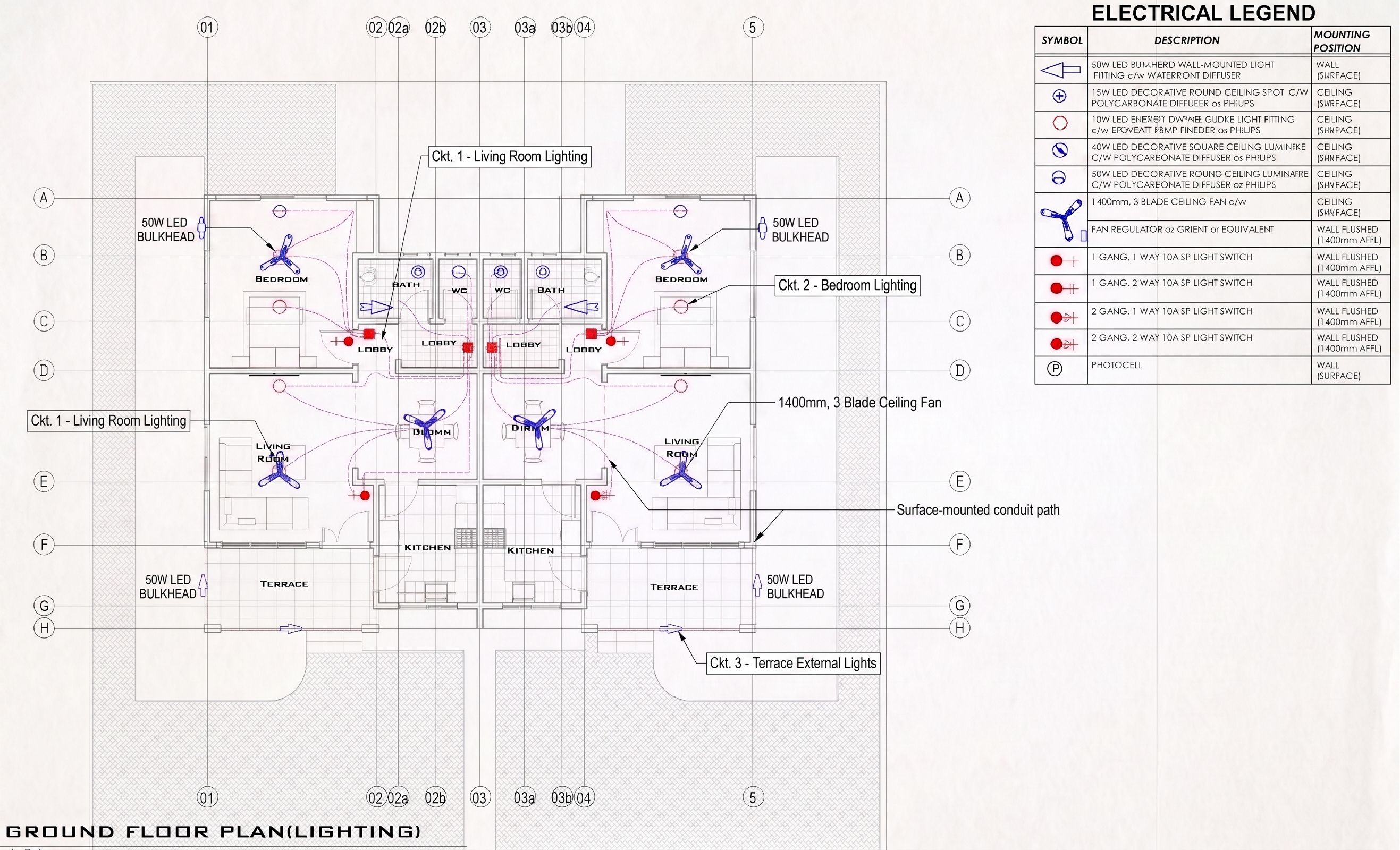

Overall Layout The plan depicts a symmetrical, mirrored residential building, likely a duplex or a small apartment block, featuring two identical units side-by-side. The layout is organized along a horizontal grid (indicated by letters A-H) and a vertical grid (indicated by numbers 01-5). Structural Elements & Orientation Symmetry: The building is a mirror image divided down the center between the two "LOBBY" and "DINING" areas. Grid System: Structural grid lines are visible, with vertical lines (1-5) and horizontal lines (A-H) used for reference. Exterior: There is a "TERRACE" at the bottom (front) of both units, with a landscaped perimeter shown by a hatched pattern. Interior Walls: Thick black lines indicate solid exterior and structural walls, while thinner lines denote interior partitions. Room Breakdown (Per Unit) Front (Bottom - Grid F to H): Each unit features a large "KITCHEN" and "LIVING ROOM" area that opens onto the "TERRACE." Middle (Grid C to F): There is a central "DINING" space near the "LOBBY" (entryway). Rear (Top - Grid A to C): This section contains the private areas, including a "BEDROOM," a "BATH," and a separate "WC." Electrical Legend The plan includes a detailed electrical legend on the right side. It specifies symbols for: Ceiling-mounted lights (round spotlights, square luminaires) and wall-mounted lights (bulkheads). Ceiling fans. Various 1-gang and 2-gang light switches (flush wall-mounted). A photocell sensor. Generate an electrical layout of the plan referencing and applying the legend in the image Show the fans at the living rooms and Bedrooms Apply 1 GANG, 2 WAY 10A SP LIGHT SWITCH and 2 GANG, 1 WAY 10A SP LIGHT SWITCH where applicable
